Reporting with Eggplant Performance Analyzer

Eggplant Performance Analyzer lets you view your performance test data visually through charts and tables. However, if you need information in a portable format for distribution or presentation, you can use the built-in reporting feature to create offline versions of your analysis views.

Creating a Report in Eggplant Performance Analyzer

You create a report based on an analysis view. To generate a report, right-click the analysis view in the Project tree and select Create report. You can also select the analysis view and click the Create report button on the Analyzer toolbar.

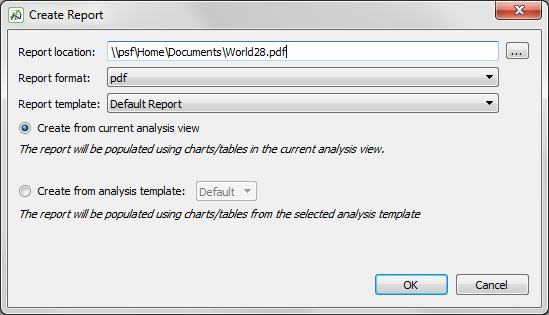

The Create Report dialog box includes several options for the report you are generating:

Report location: Browse to a location where you want to save the report file, or leave the default location.
Report format: You can choose between .pdf, .odt, or .html.
Report template: Analyzer includes the Default Report template automatically; if you have created other report templates, you can select them from the drop-down list. The report template determines the formatting of the report, and it is where you can include introductory and conclusion text. See Step by Step: Creating a Report Template below for more information about report templates.
Choose the data to present: You have two choices for how the data is generated for the report:
- Create from current analysis view: Use this option if you want to generate the report based on the current state of the analysis view. The report option will reflect any changes you've made, such as adding or deleting charts, as well as changes you've made to individual charts, such as changing the data that is displayed, or even changing a chart to a table view.
- Create from analysis template: This option lets you choose an analysis template from the drop-down list to base the report on. The report is based strictly on the settings in the template you choose.

When you've selected the appropriate options for your report, click OK to generate the report.

Step by Step: Creating a Report Template

Although you can create a report by using the Default Report template, you might want to have additional templates for different reporting situations. To create a report template, follow these steps:

Right-click Report Templates in the Project tree and select New report template. You can also select Report Templates, then click New report template on the Analyzer toolbar.

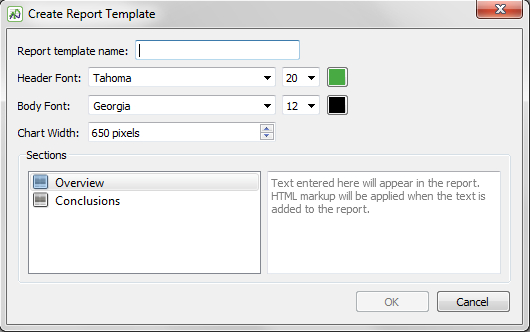

On the Create Report Template dialog box, enter a descriptive name for the new template.
You can set the font, font size, and font color separately for the header text and body text that appears in the report.
Set the Chart Width, in pixels. This setting controls the maximum width of the generated report.
The report includes both an Overview section and a Conclusions section. You can enter text to appear in these sections by selecting the title in the left column, then entering the text you want to appear for that section in the right column. You can use standard HTML markup for text formatting for any text you enter here.
Note: You might want to change the Overview and Conclusions text each time you generate a new report, assuming conditions in your tests have changed. Therefore, you can leave these sections blank when you create your template and edit or add text to them before you generate a new report based on the template. See "Editing Report Templates" below for information on editing a report template.
When you've selected your options for the report template, click OK to create the template. The new template is added to the list in the Report Templates node of the Project tree.

Editing Report Templates

Existing report templates are displayed in the Project tree beneath the Report Templates node. To review template settings or edit an existing template, select it in the tree.

To change the name of an existing template, right-click the template and select Rename report template. Edit the name or enter a new name in the pop-up dialog box, then click OK.

You can make any other edits to an existing template in the Analyzer Viewer pane when a template is selected. The header font and body font, font size, and font color can each be changed at the top of the pane. You can enter or edit text for the report Overview and Conclusions sections by selecting the category in the left column, then entering the text for that section in the right column. Remember that you use HTML markup for text formatting for any text you enter for these sections.

All changes you make to a report template are saved automatically.
